Today, I’m learning about movement in Pico-8 and other optimizations to improve game feel. This includes the following:

These are my study notes while going through LazyDev’s roguelike tutorial, so be sure to check that one out! I’ll try to post my code on Github and build some minimal examples in the process. Lastly, these posts assume a basic knowledge of Pico-8 (e.g., game loop, basic Lua, etc.), so I’ll skip over some parts.

Game loop revisited

Pico-8’s primary mechanism is defined by the game loop. I see this to be akin to the model-view-controller (MVC) pattern in software design (with the addition of _init())

  • _init() is called once. Sets up the data structures and initializes all variables.
  • _update() is the Model. All compute, logic, and rules are defined here.
  • _draw() is the View. Displays the information based from what was computed by the Model.

The Controller, in my opinion, is Pico-8’s standard library. It accepts keyboard or controller input, and transforms them into something understandable by the model.

Pointers to functions

One pattern that I often see in Pico-8 code is the use of function pointers. You can assign a function name to a variable, and call it in another line. For example:

function move_entity()
    -- calls whatever function
    -- is referenced into _mov
    _mov()
end

function move_player()
   if path_is_clear then
        _mov = move_normal
   elseif path_is_blocked then
        _mov = move_with_bump
   end
end

The move_entity function just calls a generic _mov, whatever its definition will be. How _mov behaves is manipulated by the move_player function. Based on which condition is true, _mov can be move_normal or move_with_bump. Because the game-loop always calls _update for every tick, then the move conditions are always checked.

This technique is often used on the built-in _update() and _draw() functions. My guess is that it makes the game-loop functions much cleaner. My worry is that it may be a bit harder to track what’s happening, but perhaps this technique lessens the tokens we’ll write in the end. In this regard, our game-loop will look like this:

function _init()
   -- all init functions
   _upd=update_game
   _drw=draw_game
end

function _update()
    _upd()
end

function _draw()
    _drw()
end

The _update and _draw functions will repeatedly call whatever _upd and _drw references to respectively. Later on, we can tell the program that _upd must update the game environment (_update_game) or update the player (_update_pturn). All this thanks to Lua’s ability to pass functions as pointers.

Basic sprite movement

First, let’s introduce our sprite character, Picollino! The imagery of the word evokes a derpy tomato so we’ll stick with that:

Picollino’s movement will follow the style of an overworld adventure game rather than a platformer. Thus, we don’t need to factor in gravity or friction. In an overworld grid, our character’s position is defined by its tile-coordinates \(x\) and \(y\).

Token optimization aside, let’s define a function that initializes a player:

-- initialize a player at game start
-- @return player table with init values
function make_player()
    local p = {
        -- initial coordinates
        x=32,
        y=32,
        -- animation attributes
        flip=false,
        anim={1,2,3,4}
    }
    return p
end

Movement is now a matter of changing these \(x\) and \(y\) coordinates in response to a button press. I learned that in Pico-8, this change is often denoted by \(dx\) and \(dy\) for the \(x\) and \(y\) coordinates respectively.

Thus, moving right is just \(x \Leftarrow x + dx\), and down is \(y \Leftarrow y + dy\) (yup it’s positive going down). Going to the opposite direction is achieved by inverting the signs.

I prefer writing a function, move_player(dx, dy), that takes in the corresponding change in position. Then, it updates the player coordinates with the new values. Ideally, I’d like to add a player argument in this function (a la move_player(p, dx, dy)), but it costs alot of tokens so we have to make do with global variables.

-- move_player updates player coordinates
-- @param dx change in the x-axis
-- @param dy change in the y-axis
function move_player(dx, dy)
    -- we multiply by 8 because 1 tile = 8 pixels
    -- moving a player on a single tile is actually a movement of 8 pixels
    local destx, desty = p.x + dx * 8, p.y + dy * 8
    p.x, p.y = destx, desty
end

For our button-press, I’d like to write two more functions. The first, update_game(), will be called every time to check for button presses and/or resolve variables and computations. The second, exec_btn(b), takes in a button’s numerical value and call the handler function. Let’s write the first one:

-- update_game checks for button-presses and perform calculations
function update_game()
    for i=0,5 do  -- btn(5) is X, for opening menu?
        if btnp(i) then
            exec_btn(i)
        end
    end
end

For the second one, instead of writing if statements for each directional button, we can store \(dx\) and \(dy\) values in an array, and call them whenever their respective button-number is called.

-- exec_btn handles button calls
-- @param b is the button number from pico8.fandom.com/wiki/Btn
function exec_btn(b)
    -- preload (L=0,R=1,U=2,D=3)
    local dirx = {-1,1,0,0}
    local diry = {0,0,-1,1}

    if b>=0 and b<4 then
        move_player(dirx[b+1], diry[b+1])
        return
    end
end

To explain dirx and diry, here’s an example: moving left requires a negative offset in the x-coordinate (\(x_2 = x_1 + dx\) where \(dx=-1\)) while \(y\) stays the same (\(y_2=y_1+dy\) where \(dy=0\)). Now, the left button (←) is numerically-assigned in Pico-8 as button 0. Hence, in the zeroth-index of dirx and diry, we have -1 and 0. Note that in Lua, arrays start at 1, so we just add 1 when providing the index.

Awesome! With the functions above, we now have a rudimentary system for movement. This works, but we just need to draw the sprite! In the _draw() function, just call the spr() function:

-- draw_game is a handler for all drawing events
function draw_game()
    cls(0)
    map()
    spr(1, p.x, p.y, 1, 1, p.flip)
end

<iframe src="/assets/png/pico8-move/basic_movement.html" title="description" height="500" width="500" display="block"></iframe>

Basic four-directional movement. Press the arrow keys!

Smoother tile transition

Picollino’s movement still looks a bit jarring: he seems to “teleport” from one tile to another. This is because we are moving 8 pixels right away, a large distance in my opinion. I’ll improve animation by doing the following:

  1. Flip the sprite when moving to the opposite direction
  2. Add a “smoother” to ease the transition from one tile to the next.
  3. Sprite animation

Flip sprite based on direction

The first one is easy. Recall that in our make_player() function, we have a flip attribute. We set that as true when our sprite is moving to the left, i.e. when dx < 0. We’ll update the move_player() function to account for this change.

-- move_player updates player coordinates
-- @param dx change in the x-axis
-- @param dy change in the y-axis
function move_player(dx, dy)
    local destx, desty = p.x + dx * 8, p.y + dy * 8
    ------------------NEW CODE---------------------
    if dx < 0 then
        p.flip = true
    elseif dx > 0 then
        p.flip = false
    end
    -----------------------------------------------
    p.x, p.y = destx, desty
end

We use elseif instead of else so that the sprite won’t immediately face right if our last action was left and we decide to move up or down.

Tile transition

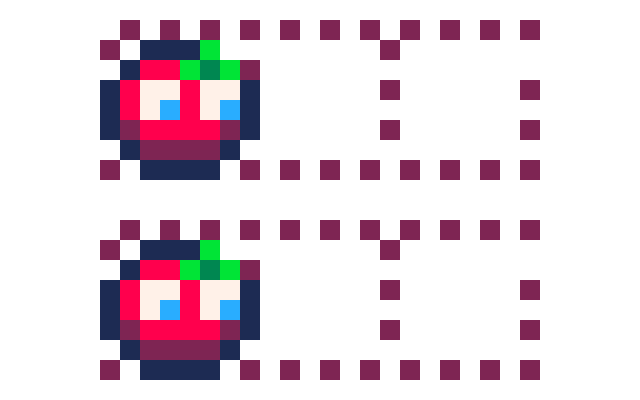

In order to understand LazyDev’s technique for smoother tile transition, let me illustrate an example. Suppose we want to move a sprite to the right from tile \(T(3,2)\) to \(T(4,2)\). In pixel coordinates, we are essentially “teleporting” from \(P(24,16)\) to \(P(32,16)\), a huge distance that doesn’t look like walking. Instead, we want to traverse the \(x\) axis in small increments, i.e. \(24, 24.8, 25.6, 26.4, \ldots\), until it reaches its destination.

We accomplish this by defining an offset that will incrementally move the sprite from its old coordinate to the new one, i.e. \(P_{x_2,y_2} = P_{x_1,y_1} + o_{x,y}\). The rate in which the offset updates is controlled by a new variable, \(p_t\), that dictates how fast the transition will be animated.

Because we want to save tokens, we precompute the destination and subtract the offset as we go along. So in our earlier example, we will set \(P_{x,y}\) to its new value, \(P(32,16)\), and perform subtraction when calling the spr() function.

The offset \(o_{x,y}\) starts with a value \(s_{x,y}\) and grows smaller as it reaches \(0\):

\[o_{x,y} = s_{x,y} * (1 - p_t), s_{x,y} = -d_{x,y}\]

where \(s_{x,y}\) is the start value for the offset. The transition speed, \(p_t\) is then defined and updated as:

\[p_t \Leftarrow min(p_t+\delta,1), p_0 = 0\]

where \(\delta\) controls how fast it can be. Notice that it is clipped to \(1\). To be honest, I find it a bit convoluted, but I think these are optimizations to reduce token count, a very important resource in Pico-8.

Below is a table of values so you can see the relationship between \(p_t\), the offset \(o_{x,y}\), and what is actually drawn or sent to the spr() function. Note that here, we’re moving in pixel coordinates from \(P(24,16)\) to \(P(32,16)\), with \(\delta=0.1\) and \(s_x=-dx*8=-1*8=-8\). I’ll only list down the values in the \(x\)-axis, because we only move in that direction:

\(p_t\), transition speed 0.0 0.1 0.2 0.3 0.4 0.5 0.6 … 1.0
\(o_x\), size of move-offset -8 -7.2 -6.4 -5.6 -4.8 -4.0 -3.2 … 0
spr(), drawn on-screen 24 24.8 25.6 26.4 27.2 28 28.8 … 32

To accomplish this, we define a function, update_pturn, that signals the start of a player turn. We time this turn by \(p_t\), that increments by \(\delta\) until it reaches \(1\). Once \(p_t=1\), we remove control from the player and update the game via update_game:

function update_pturn()
    delta=0.1
    p_t = min(p_t+delta, 1) -- increment timer
    if p_t == 1 then  -- if timer is done...
        -- ...end player turn and update game
        _upd=update_game
    end
end

Let’s initialize p_t in our _init function. It starts from \(0\) and it’s capped at \(1\):

function _init()
    ------------------NEW CODE---------------------
    p = make_player()
    p_t=0
    -----------------------------------------------
    _upd=update_game
    _drw=draw_game
end

We move during a player’s turn, so let’s add in a generic function, p_mov. Later on, we’ll pass function pointers to p_mov so that we can control the type of movement it will execute:

function update_pturn()
    delta=0.1
    p_t = min(p_t+delta, 1)
    ------------------NEW CODE---------------------
    p_mov()
    -----------------------------------------------
    if p_t == 1 then
        _upd=update_game
    end
end

We just need to update the move_player function so that all movement initialization steps are defined here. Later on, we’ll implement mov_walk to define the incremental transition discussed in the table of values above:

function move_player(dx,dy)
    -- remove multiplier, move it to draw
    local destx, desty = p.x + dx, p.y + dy
    if dx < 0 then
        p.flip = true
    elseif dx > 0 then
        p.flip = false
    end

    ------------------NEW CODE---------------------
    -- move player by dx, dy [-1, 0, 1]
    p.x += dx
    p.y += dy
    -- previous location after moving is just inverse
    p.sox, p.soy = -dx * 8, -dy * 8
    p.ox, p.oy = p.sox, p.soy
    p_t = 0
    -- update function pointers
    _upd = update_pturn  -- start player turn and...
    p_mov = mov_walk  -- ... move by walking
    -----------------------------------------------
end

Now, mov_walk performs the computation we had above. As p_t increases from \(0\Rightarrow 1\), the offsets p.ox and p.oy approach zero. We’ll also update our draw_game function to make use of our offsets:

function mov_walk()
    p.ox=p.sox * (1-p_t)
    p.oy=p.soy * (1-p_t)
end

function draw_game()
    cls(0)
    map()
    spr(1, p.x*8+p.ox, p.y*8+p.oy, 1, 1, p.flip)
    -- p.x, p.y are already in the new position (destination), but instead,
    -- we draw its offset
end

Again, p.x and p.y are already in their new positions after moving (destination). However, we don’t want to draw this position immediately. We draw the new position plus offset that starts from -8 (i.e., the previous position) until it reaches 0 (i.e., the new/current position). Let’s look at the sprite movement, observe that it’s much smoother now!

<iframe src="/assets/png/pico8-move/offset_movement.html" title="description" height="500" width="500" display="block"></iframe>

Basic four-directional movement with offset. Press the arrow keys!

Sprite animation

Let’s just do a simple animation for Picollino:

In order for the program to cycle through these frames, we need to define a “global” timer t. Based on the timer value, the frame number will change. We use a simple trick to cycle across frames in p.anim: by mod-dividing the value of t by the length of our animation array, we can get all animation frames:

index = t%#ani + 1

So, even if we’re far ahead of the animation timer (say, t=2000+), the index of p.anim will still be within range. We can control the transition speed by dividing t by some number. Let’s modify the equation above and show a table of values for illustration:

function get_frame(ani)
    rate=2 -- controls transition speed
    return ani[flr(t/rate)%#ani+1]
end
t 0 1 2 3 4 5 6 7 8
t%#ani+1 1 2 3 4 1 2 3 4 1
get_frame() 1 1 2 2 3 3 4 4 1

Input buffering

Notice how the sprite only registers your move once its turn is done. This means that when you try to input two commands in a row, only one of them will be executed. It’s not good for game feel, thus, we can solve this quality-of-life issue by buffering the inputs.

The way input-buffering works is that we have a “buffer” that stores whatever key we pressed while the player turn (i.e., update_pturn) is still active. The input stored in this buffer is then executed once update_game is called. Its basic form is:

if buffer==-1 then
        buffer=get_btn()
end
exec_btn(buffer) -- only called in update_game

We just need to update our exec_btn function to accommodate the case when buffer is untouched (buffer==-1):

-- exec_btn handles button calls
-- @param b is the button number from pico8.fandom.com/wiki/Btn
function exec_btn(b)
    -- preload (L=0,R=1,U=2,D=3)
    local dirx = {-1,1,0,0}
    local diry = {0,0,-1,1}

    ------------------NEW CODE---------------------
    if butt<0 then return end
    -----------------------------------------------
    if b>=0 and b<4 then
        move_player(dirx[b+1], diry[b+1])
        return
    end
end

Lastly, we implement the get_btn function:

function get_btn()
    for i=0,5 do
        if btnp(i) then -- if button is pressed...
            return i -- return that
        end
    end
    return -1 -- else, return buffer default val
end

We just put this buffer in both our update_game and update_pturn functions. Again, note that the execution of the input will only happen in update_game:

function update_game()
    if buffer==-1 then
        buffer=get_btn()
    end
    exec_btn(buffer) -- execution only happens here
    buffer=-1
end

For update_pturn, we just want to fill the buffer in case the player decides to press something while the sprite is still moving:

function update_pturn()
    if buffer==-1 then
        buffer=get_btn()
    end
    --- other movement functions...
end

Et voilà! We now have input buffering! Feel the difference:

<iframe src="/assets/png/pico8-move/inputbuffer.html" title="description" height="500" width="500" display="block"></iframe>

Basic four-directional movement with offset and input-buffering. Press the arrow keys!

Conclusion

In this notebook, I learned alot about the basics of Pico-8 movement. Now I can move a sprite in four directions, perform smoother tile transitions, and improve game feel by buffering inputs. To be honest I still have a long way to go, but I think this is a good start!

I write these notes mostly for myself so I apologize in advance if there are any haphazard equations or buggy code in the post. If you wish to correct them, simply open-up a Pull Request so that I can update them immediately.
